Journal of Peking University (Health Sciences) ›› 2026, Vol. 58 ›› Issue (1): 84-88. doi: 10.19723/j.issn.1671-167X.2026.01.011

Previous Articles     Next Articles

Impact of ultrasonic scaling on abutment screw torque in implant restorations

Yi TANG1, Xuezhu ZHAO1, Xu YANG1, Huimei JIA1, Yunsong LIU2,*()

  1. 1. Second Clinical Division, Peking University School and Hospital of Stomatology & National Center for Stomatology & National Clinical Research Center for Oral Diseases & National Engineering Research Center of Oral Biomaterials and Digital Medical Devices & Beijing Key Laboratory of Digital Stomatology, Beijing 100081, China
    2. Department of Prosthodontics, Peking University School and Hospital of Stomatology & National Center for Stomatology & National Clinical Research Center for Oral Diseases & National Engineering Research Center of Oral Biomaterials and Digital Medical Devices & Beijing Key Laboratory of Digital Stomatology, Beijing 100081, China
  • Received:2025-09-24 Online:2026-02-18 Published:2025-11-27
  • Contact: Yunsong LIU
  • Supported by:
    the Youth Beijing Scholars Program(089-2024); the National Center of Stomatology Suitable Technology Promotion Project(2023-NCSHTP-04)

RICH HTML



PDF (PC)

Abstract:

Objective: To investigate the effect of ultrasonic scaling on the torque of implant prosthetic abutment screws and to compare the differences in torque influence between ultrasonic tips of two different materials. Methods: In this study, a total of 22 implants were selected, and two distinct primary torque values (PTV) 15 N·cm and 35 N·cm were applied to the temporary and definitive restorations mounted on each implant, respectively. Subsequently, ultrasonic scaling was performed for one minute using either a traditional metal scaling tip (metal tip) or a carbon fiber scaling tip (fiber tip), followed by measurement of the removal torque value (RTV). Paired t-tests were used to compare the torque changes in the same prosthesis before and after ultrasonic scaling (significance level α=0.05, two-tailed) to evaluate the effect of ultrasonic scaling on torque. Under the same PTV condition, paired t-tests were also conducted to compare the RTV after scaling with different tips to analyze the influence of the tip material on RTV. Results: The RTVs in all the four groups were significantly lower than the corresponding PTVs after ultrasonic scaling (P < 0.05). At a PTV of 15 N·cm, the RTV of the fiber tip group was (14.1±1.27) N·cm, significantly higher than that of the metal tip group (12.3±1.56) N·cm, (P < 0.05). At a PTV of 35 N·cm, the RTV of the fiber tip group was (34.0±1.29) N·cm, while that of the metal tip group was (33.1±1.70) N·cm, with no statistically significant difference between the two groups (P>0.05). Conclusion: Ultrasonic scaling can lead to significant attenuation of torque in implant prosthetic abutment screws. Under a lower primary torque condition (15 N·cm), carbon fiber scaling tips significantly reduce torque attenuation compared with traditional metal scaling tips. However, under a higher primary torque condition (35 N·cm), no significant difference in the effect on screw torque was observed between the two tip types. These findings suggest that screw torque should be checked after clinical peri-implant maintenance to reduce the risk of screw loosening.

Key words: Ultrasonic scaling, Screw loosening, Torque attenuation, Removal torque value

CLC Number:

  • R783.6

Figure 1

Measurement of torque values via the implant motor A, the temporary prothesis was tightened to a primary torque value (PTV) of 15 N·cm by the implant motor; B, following one minute of scaling, the removal torque value (RTV) was determined by reversing the motor to loosen the central screw and recording the peak torque encountered."

Figure 2

Attenuation of screw torque after ultrasonic scaling * P < .05, * *P < .01, * * *P < .001. PTV, primary torque value; RTV, removal torque value."

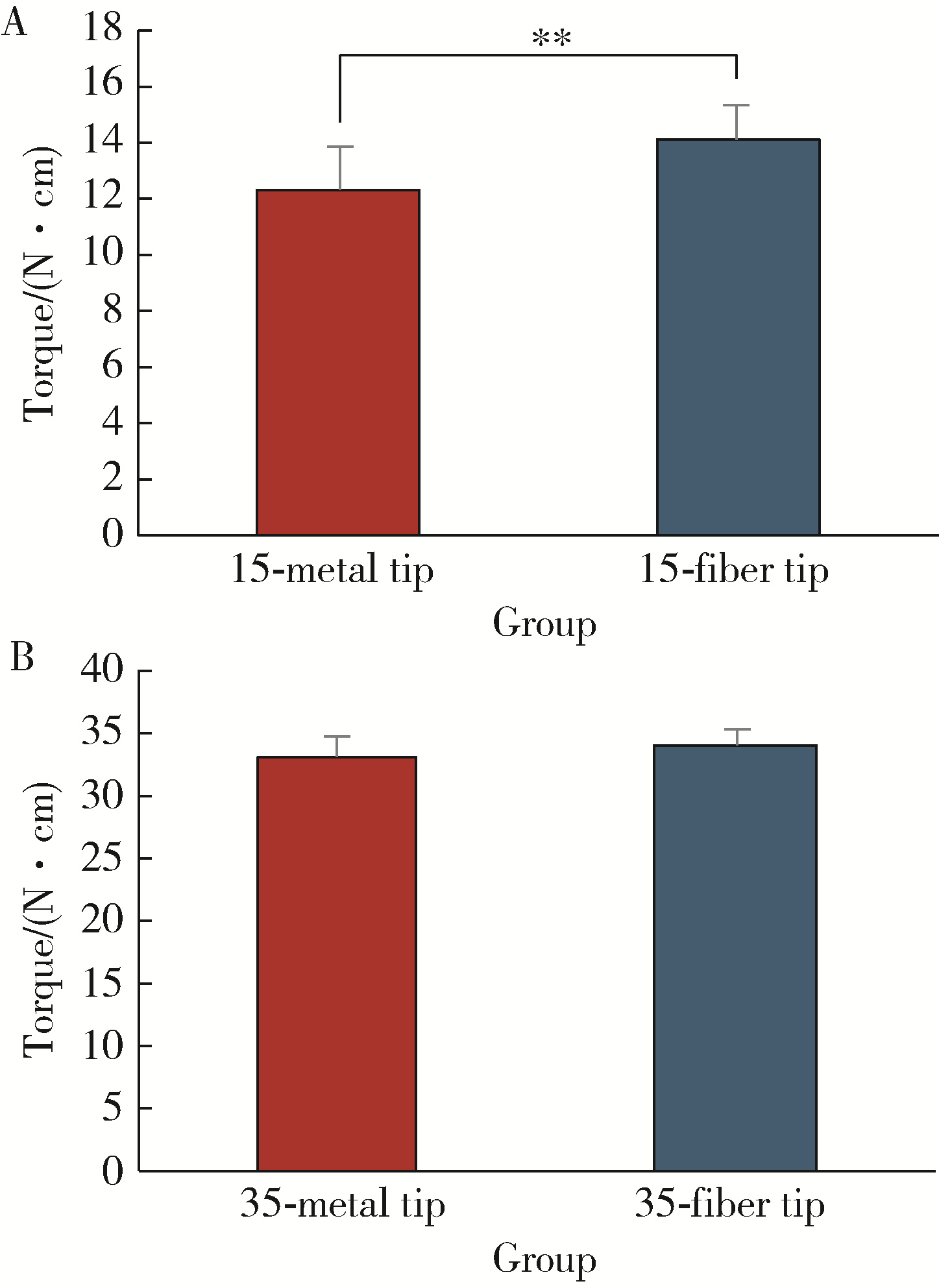

Figure 3

Effect of fiber and metal tips on screw torque attenuation A, at a primary torque of 15 N·cm, ultrasonic scaling with a fiber tip resulted in significantly less torque attenuation compared to a metal tip; B, at a primary torque of 35 N·cm, no statistically significant difference in torque attenuation was observed between the two tips. * *P < .01."

1
Sailer I , Karasan D , Todorovic A , et al. Prosthetic failures in dental implant therapy[J]. Periodontol 2000, 2022, 88 (1): 130- 144.

doi: 10.1111/prd.12416
2
张磊, 冯海兰. 种植固定修复后机械并发症的预防和处理[J]. 中华口腔医学杂志, 2016, 51 (1): 10- 14.
3
Alsubaiy E . Abutment screw loosening in implants: A literature review[J]. J Family Med Prim Care, 2020, 9 (11): 5490- 5494.

doi: 10.4103/jfmpc.jfmpc_1343_20
4
梁峰吴敏节, 邹立东. 后牙区单牙种植修复5年后的临床修复疗效观察[J]. 北京大学学报(医学版), 2021, 53 (5): 970- 976.

doi: 10.19723/j.issn.1671-167X.2021.05.027
5
Bishti S , Alsagher M , Homa M , et al. Factors influencing the screw stability of implant-supported single crowns: An in vitro study[J]. Materials, 2025, 18 (3): 506.

doi: 10.3390/ma18030506
6
Satpathy M , Jose RM , Duan Y , et al. Effects of abutment screw preload and preload simulation techniques on dental implant lifetime[J]. JADA Found Sci, 2022, 1, 100010.
7
Sagheb K , Görgen CI , Döll S , et al. Preload and friction in an implant-abutment-screw complex including a carbon-coated titanium alloy abutment screw: An in vitro study[J]. Int J Implant Dent, 2023, 9 (1): 8.

doi: 10.1186/s40729-023-00473-3
8
Huang Y , Wang J . Mechanism of and factors associated with the loosening of the implant abutment screw: A review[J]. J Esthet Restor Dent, 2019, 31 (4): 338- 345.

doi: 10.1111/jerd.12494
9
Srivastava S . A study on screw loosening in dental implant abutment[J]. Crit Rev Biomed Eng, 2025, 53 (1): 37- 46.

doi: 10.1615/CritRevBiomedEng.2024053306
10
赵旭斌, 赵文艳, 刘云松. 种植固定修复体的咬合设计及其临床策略[J]. 中国实用口腔科杂志, 2025, 18 (3): 270- 274.
11
韩子瑶, 危伊萍, 胡文杰. 种植体周角化黏膜宽度临床意义的相关研究进展[J]. 中华口腔医学杂志, 2025, 60 (4): 425- 430.
12
释栋, 胡文杰. 种植体周围炎再生治疗临床效果观察(附1例33个月随访报告)[J]. 中国实用口腔科杂志, 2020, 13 (3): 146- 150.
13
Tang C , Deng J , Long C , et al. Combining glycine powder airpolishing and ultrasonic scaling for bone regeneration around infected dental implants[J]. Clin Implant Dent Rel Res, 2025, 27 (3): e70042.

doi: 10.1111/cid.70042
14
Schmage P , Kahili F , Nergiz I , et al. Cleaning effectiveness of implant prophylaxis instruments[J]. Int J Oral Maxillofac Implants, 2014, 29 (2): 331- 337.

doi: 10.11607/jomi.2524
15
Butkevica A , Nathanson D , Pober R , et al. Measurements of repeated tightening and loosening torque of seven different implant/abutment connection designs and their modifications: An in vitro study[J]. J Prosthodont, 2018, 27 (2): 153- 161.

doi: 10.1111/jopr.12467
16
Arshad M , Mahgoli H , Payaminia L . Effect of repeated screw joint closing and opening cycles and cyclic loading on abutment screw removal torque and screw thread morphology: Scanning electron microscopy evaluation[J]. Int J Oral Maxillofac Implants, 2018, 33 (1): 31- 40.

doi: 10.11607/jomi.5476
17
Guzaitis KL , Knoernschild KL , Viana MAG . Effect of repeated screw joint closing and opening cycles on implant prosthetic screw reverse torque and implant and screw thread morphology[J]. J Prosthet Dent, 2011, 106 (3): 159- 169.

doi: 10.1016/S0022-3913(11)60115-7
18
Xiao H , Yang Y , Liu Z , et al. Opinions regarding reuse or replacement of implant prosthesis retaining screws: A systematic review[J]. Int J Oral Maxillofac Implants, 2017, 32 (5): 985- 991.

doi: 10.11607/jomi.5717
